Police COFDM Video Transmitter AES256

  • 1
  • 2

Brand Name : OEM / LinkAV

Model Number : LKAV-1506

Certification : CE

Place of Origin : Shenzhen China

MOQ : 1

Price : USD, RMB

Payment Terms : T/T, PayPal

Delivery Time : Negotiable

Packaging Details : Brown Carton

Supply Ability : 1000pcs/Month

Modulation : COFDM

NLOS : 1-3KM

Encryption : AES256

Latency : 60-100ms

Data Rate : 3-32Mbps

Contact Now

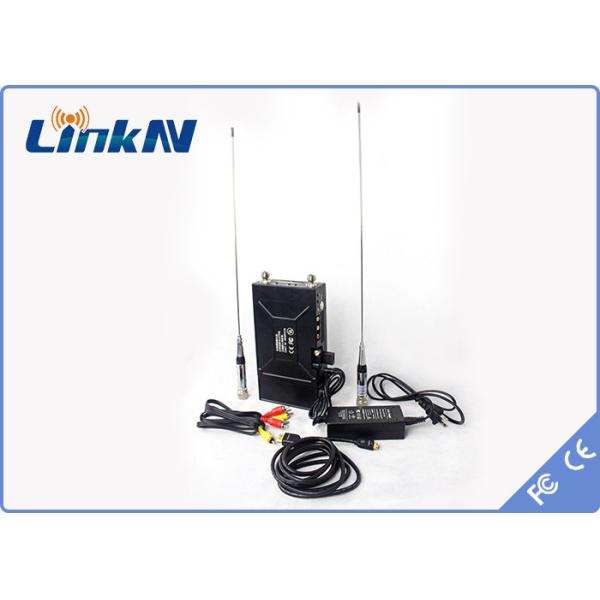

Police COFDM Video Transmitter AES256

Introduction

The LKAV-1506 is a manpack COFDM video transmitter featuring two way voice intercom. It is specifically designed for government video surveillance, police law enforcement, border control, internal security and command video transmission applications. It is ideal for establishing rugged wireless video links under all situation including high-speed mobile and urban environments. It employs low latency high profile H.264 encoding for excellent video quality over the wireless link, is very well suited to all mission types.

Features

  • Advanced COFDM modulation and H.264 coding
  • Support HDMI and CVBS video inputs
  • Supports two-way voice intercom
  • Range up to 1.5-3km NLOS and 5-6km LOS
  • 60-100ms low system latency
  • Strong anti-interference ability
  • Manpack design for easy operation
  • With long endurance battery
  • Rugged aluminum alloy housing

Specification

Transmission Characteristics
Modulation COFDM
Modulation Type QPSK(4QAM), 16QAM, 64QAM
Working Frequency

300MHz-860MHz (Default 690-710MHz)

860MHz-2.7GHz for customization
Transmission Power 33dBm (37dBm optional)
RF Bandwidth 2-8MHz
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input

HDMI: 1080P/1080i/720P/720i…

CVBS: 720*576@PAL & 720*480@NTSC
Video Compression H.264
System Latency 60-100ms
RF Interface N F head x2
Parameter Setting LED Control Panel
Encryption AES256 (User-defined password)
Electrical Characteristics
Working Voltage DC 12V
Working Current 1.5A
Power Consumption ≤ 43dBm
Battery Endurance 3~5hours (12V/7800mAh)
Physical Characteristics
Working Temp. -20℃~70℃
Dimensions 170x120x45mm (w/o battery);
220x120x45mm (w/ battery)
Weight 1.2kg (w/o battery);
1.75kg (w/ battery)

Police COFDM Video Transmitter AES256
